SuperGrip-R

The SuperGrip-R is a brushwood grapple. It’s based on the same frame as the rest of the SuperGrip series, but has heavily reinforced brushwood arms specially designed for forwarding brushwood, forest residue, and tree residue – even stumps.

The arms have no knives but extra reinforcement to handle the most demanding forwarding. Under the boom line is a sturdy reinforcement plate connecting the shanks to prevent them from getting bent out of shape.

LIFT ONLY WHAT YOU WANT TO LIFT

Anyone who’s tried to harvest brushwood with a regular log grapple knows why you need a special brushwood grapple. There are no knives at the grapple opening, just four reinforced arms. The result is that the brushwood is squeezed together and the grapple no longer jams when opened. Most of all, you lift only what you want, without any debris that makes the forest residue difficult to sell.

DESIGNED TO WORK UNDER PRESSURE

Just like the SuperGrip std and the SuperGrip-S, the SuperGrip-R has a cylinder that can handle up to 250 bar. High-strength plate is used throughout, and it features Hultdins’ classic expander pin system to eliminate play.

SG 260R SG 260R
SG 300R SG 300R
SG 360R SG 360R
SG 420R SG 420R
SG 520R SG 520R
Compare the models

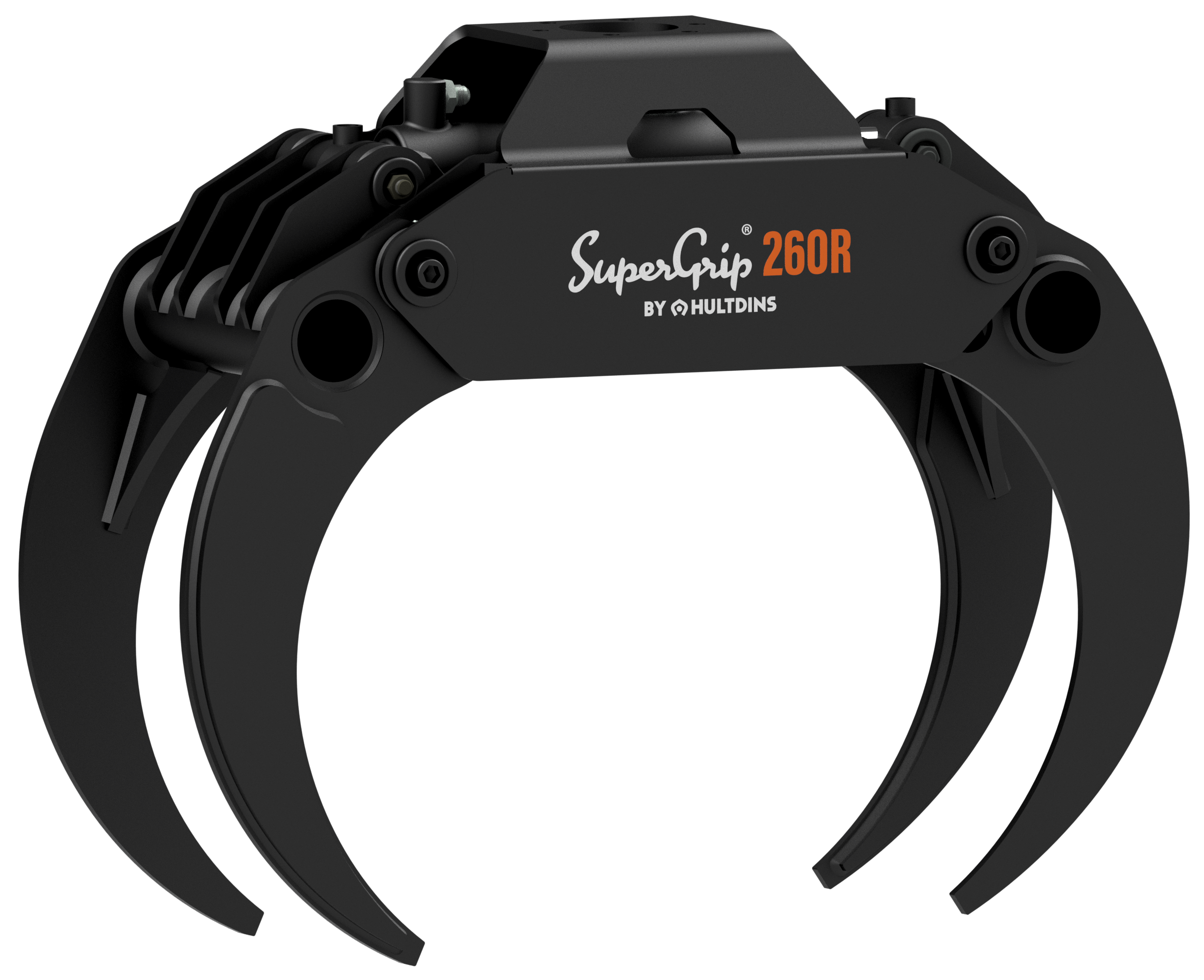

SG 260R

SG 260R

Grapple Area 0.26 m2
Max. Load 3 000 kg
Weight 210 kg

SG 300R

SG 300R

Grapple Area 0.30 m2
Max. Load 3 000 kg
Weight 217 kg

SG 360R

SG 360R

Grapple Area 0.36 m2
Max. Load 4 000 kg
Weight 338 kg

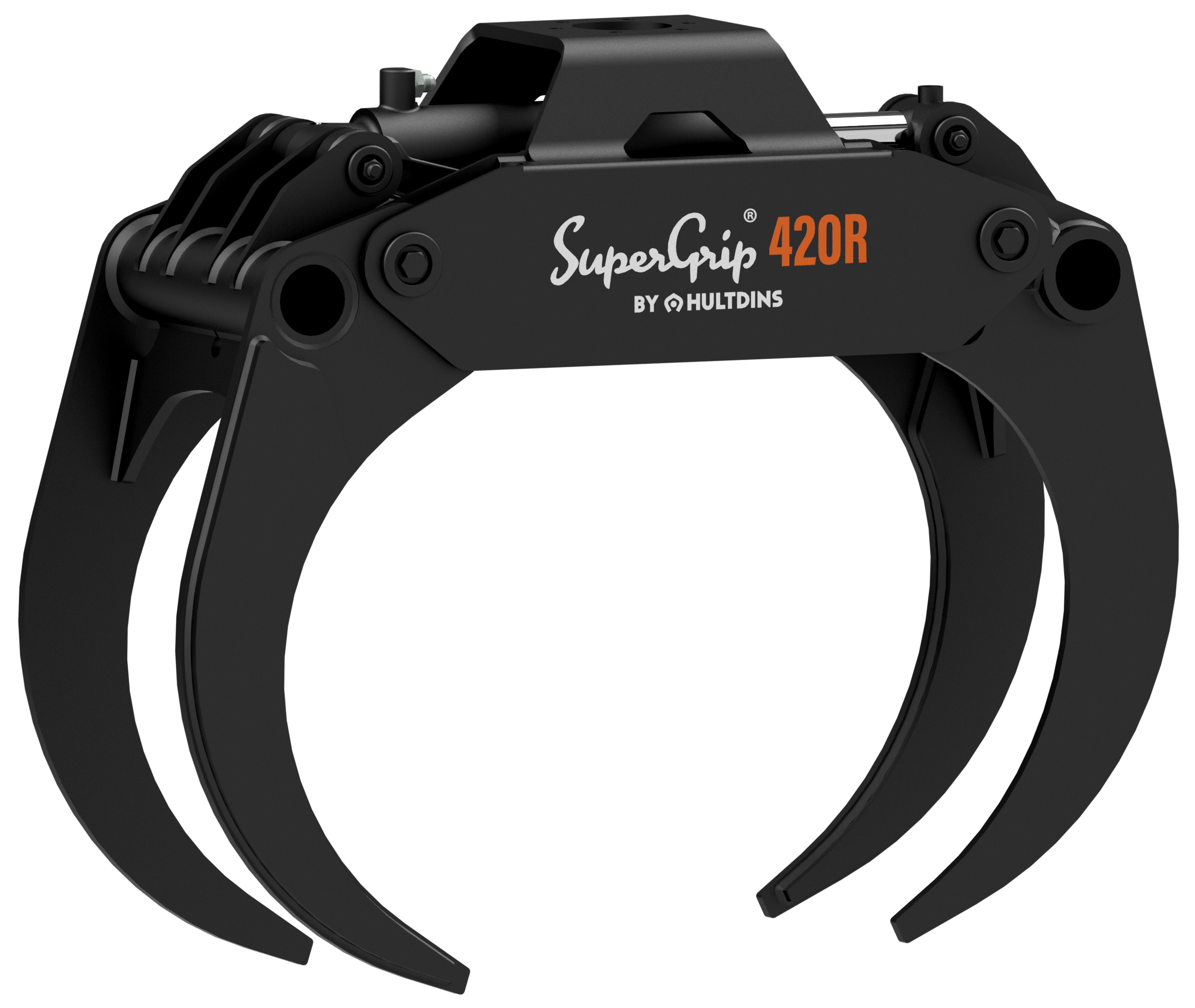

SG 420R

SG 420R

Grapple Area 0.42 m2
Max. Load 4 000 kg
Weight 371 kg

SG 520R

SG 520R

Grapple Area 0.52 m2
Max. Load 4 500 kg
Weight 410 kg

Technical specifications
