MultiGrip-XR

The MultiGrip (MG/XR) is a flexible bypass grapple with or without a rotator that is suited to most construction jobs. The interlocking arms enable the MG to grab almost anything. For really heavy work and rock moving, we’d recommend our MG-T sorting grapple series. Attach a quick coupler to the rotator or a freely suspended link. Maybe you’d prefer to buy a grapple without a rotator and bolt or weld it to your existing mount – the possibilities are almost endless.

WE TOOK THE BEST AND MADE IT BETTER

The MG is stronger than our strongest log grapple. With expander pins and sturdy bushings, the MG is a grapple that lasts. The two braces are solid cast metal and the MG also features an integrated load-holding valve, so that you don’t have to keep the grapple button depressed. What’s more, it’s equipped with an accumulator on the grapple cylinder that enables the arms to follow if, for example, a rock starts to slip and you risk losing your grip.

WITH OR WITHOUT ROTATOR

The MG / XR is available including a rotator for mounting either freely suspended in a link or fixed to the upper section of the rotator. The MG-T is also available without a rotator if you’d prefer to weld or bolt it to your own mount.

MG12 / XR MG12 / XR
MG16 / XR MG16 / XR
MG20 / XR MG20 / XR
Compare the models

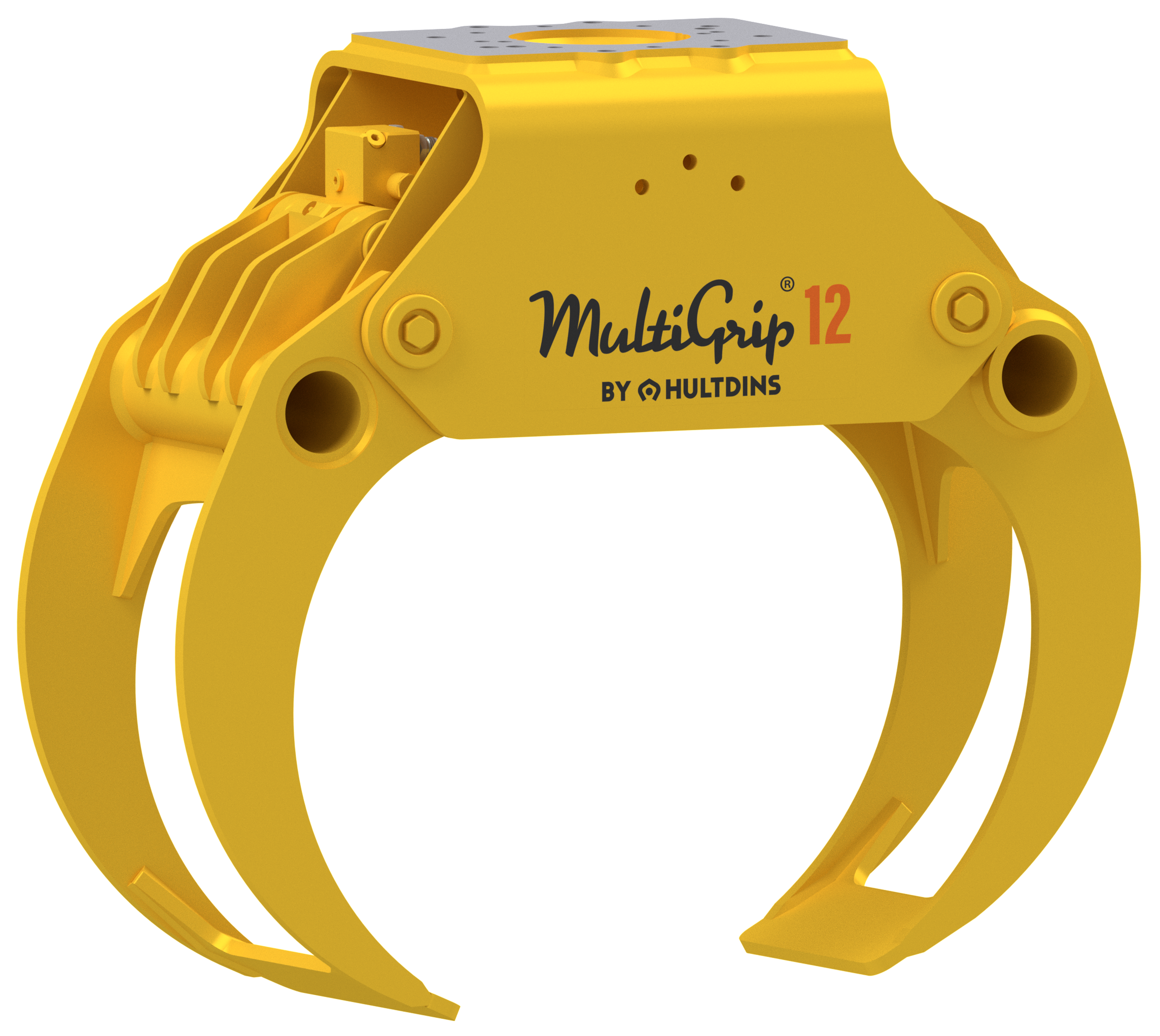

MG12 / XR

MG12 / XR

Grapple Area 0,26 m2
Max load 4000 kg
Weight approx. 310 kg

MG16 / XR

MG16 / XR

Grapple Area 0,36 m2
Max. Load 8 000 kg
Weight excl. rotator:
ca. 460 kg

MG20 / XR

MG20 / XR

Grapple Area 0,52 m2
Max. Load 10 000 kg
Weight excl. rotator:
ca. 590 kg

Technical specifications
