Everyone in the industry knows the SuperGrip S series – where the S stands for Strong.
Built with thicker plates, oversized expander pins, and heavily reinforced components, the SuperGrip S has long set the standard for contractors demanding maximum durability in heavy-duty forwarding, timber handling, and excavator applications.
The SuperGrip S/XR takes this exact same legendary strength and adapts it for the next level of rotator integration.
The SuperGrip S/XR is fundamentally the same proven heavy-duty log grapple that you know and rely on. It retains the signature frame strength, thick-section steel arms, and the popular geometry that delivers optimal log-rolling characteristics and high filling capacity.
The essential difference with the SuperGrip S/XR lies in the upper frame section. The S/XR is equipped with a specialized top mount designed to fit compact, high-load rotators such as Indexator XR300, XR350, and XR400, as well as equivalent rotators from manufacturers like Thumm and Baltrotors.
The SuperGrip S/XR can also be combined with quick couplers or link-mounted setups. By integrating this upper flange interface directly onto the S-series frame, the SuperGrip S/XR provides a direct, low-profile fitment that eliminates extra adaptors, reduces overall weight at the boom tip, and offers an unbeatable combination of extreme strength and precise control.

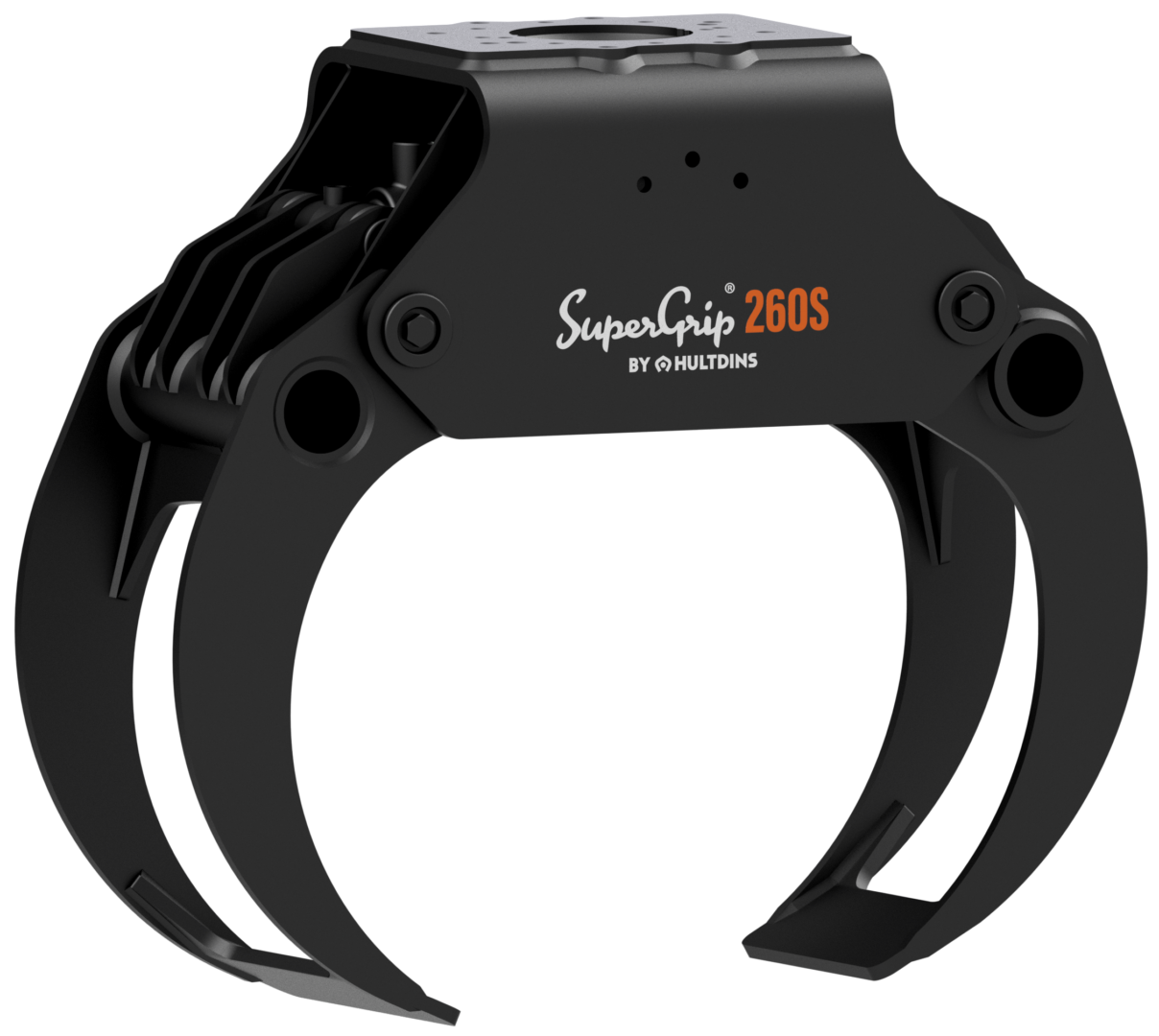

SG 260 S/XR

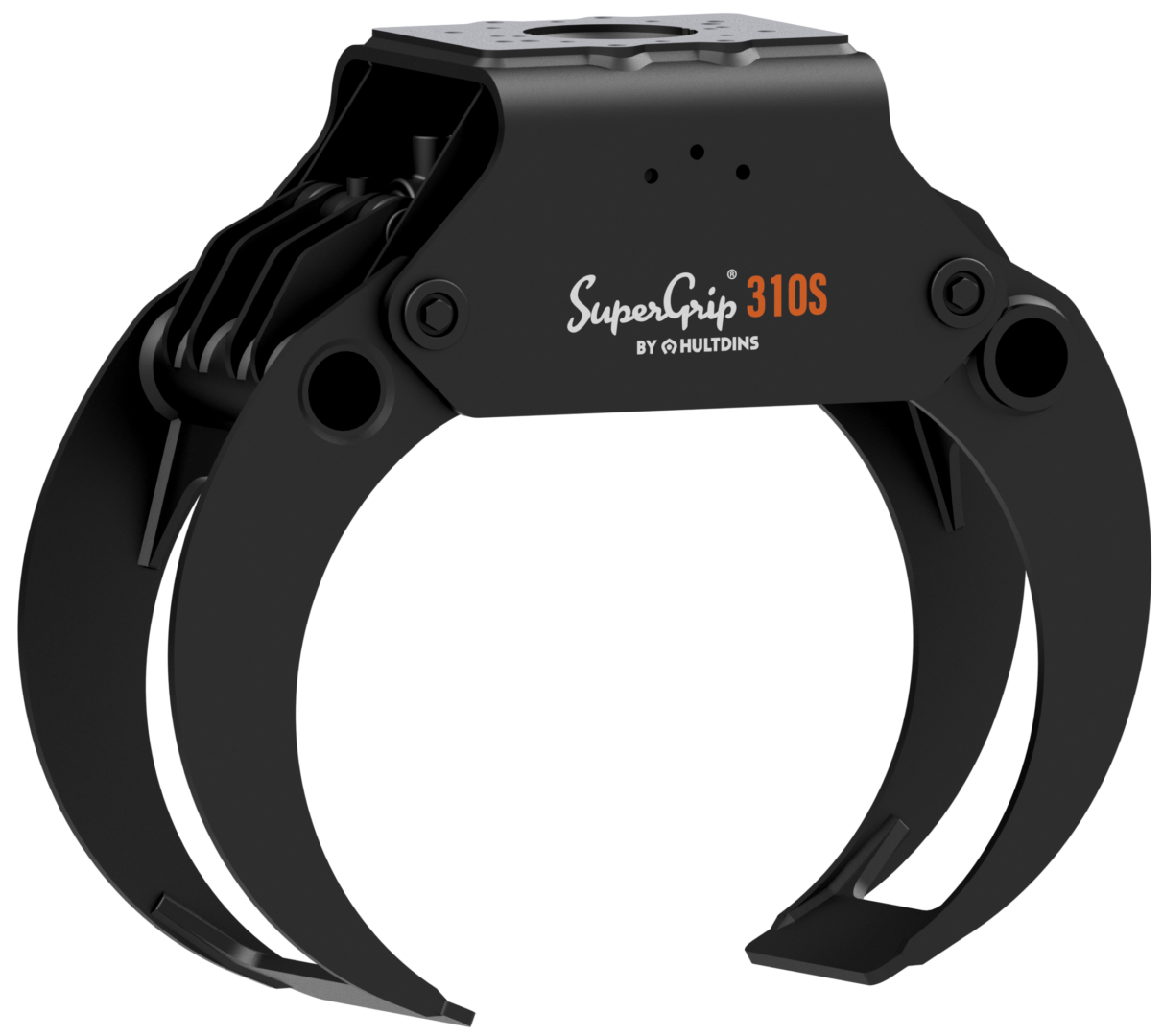

SG 310 S/XR

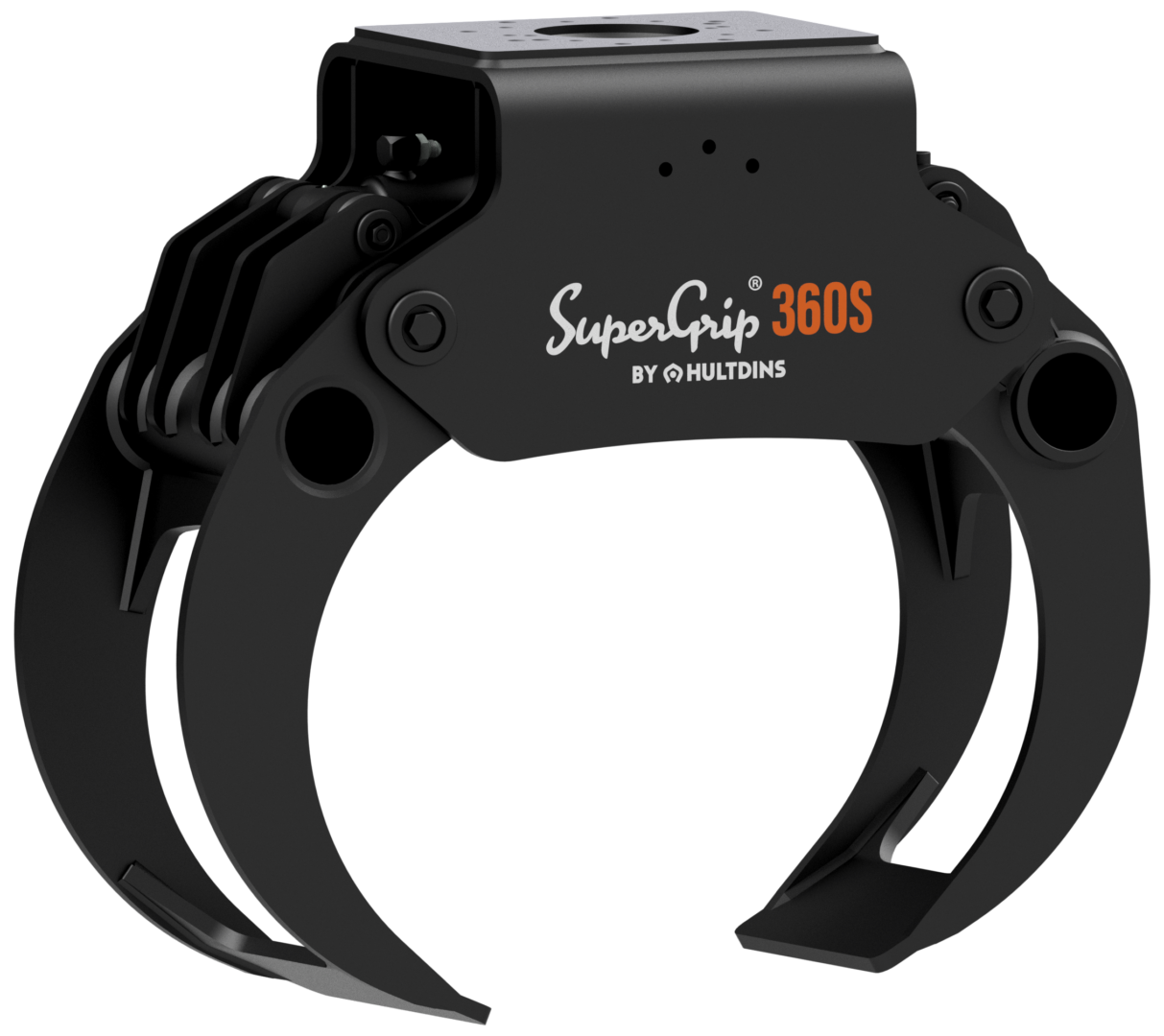

SG 360 S/XR

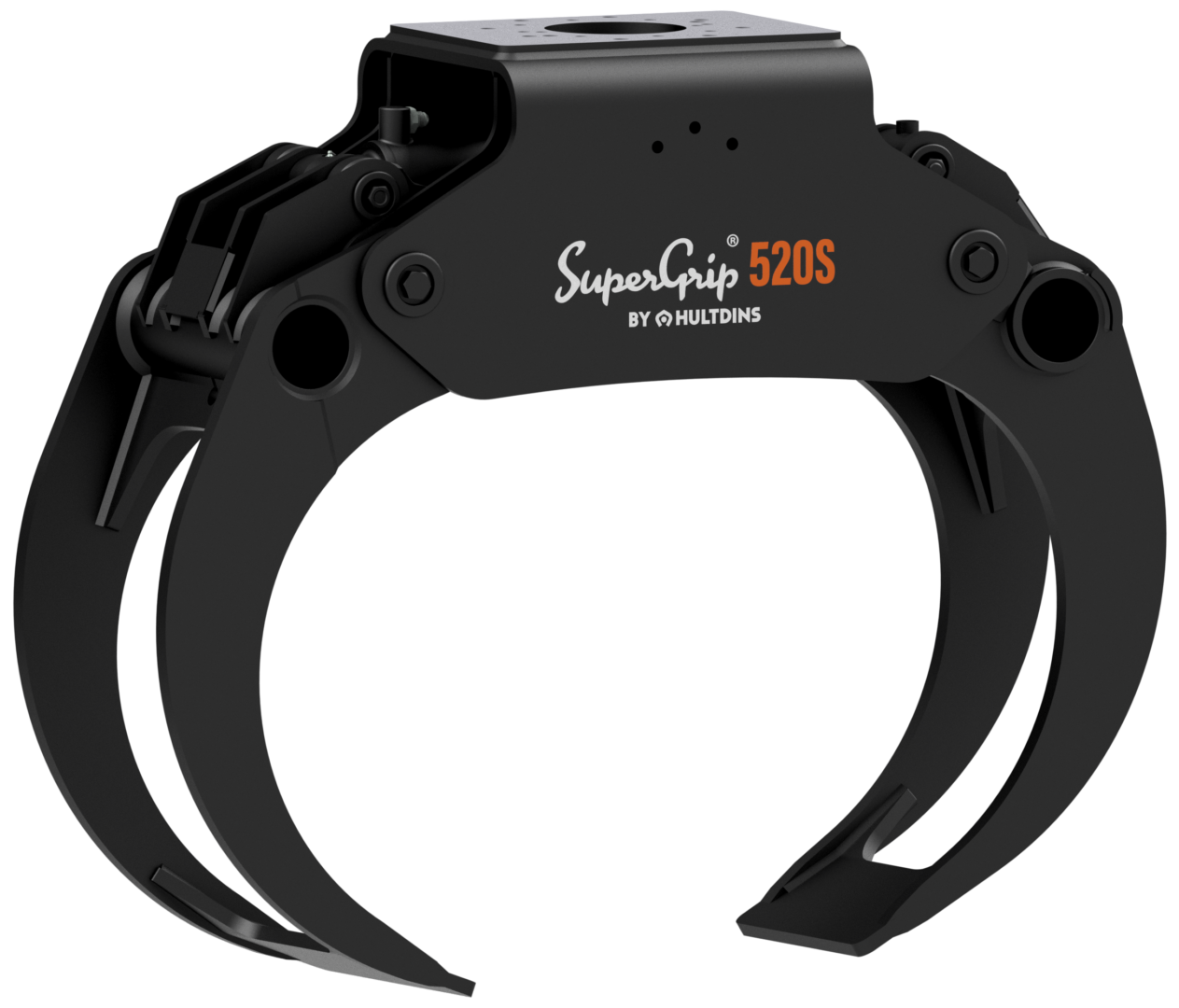

SG 520 S/XR

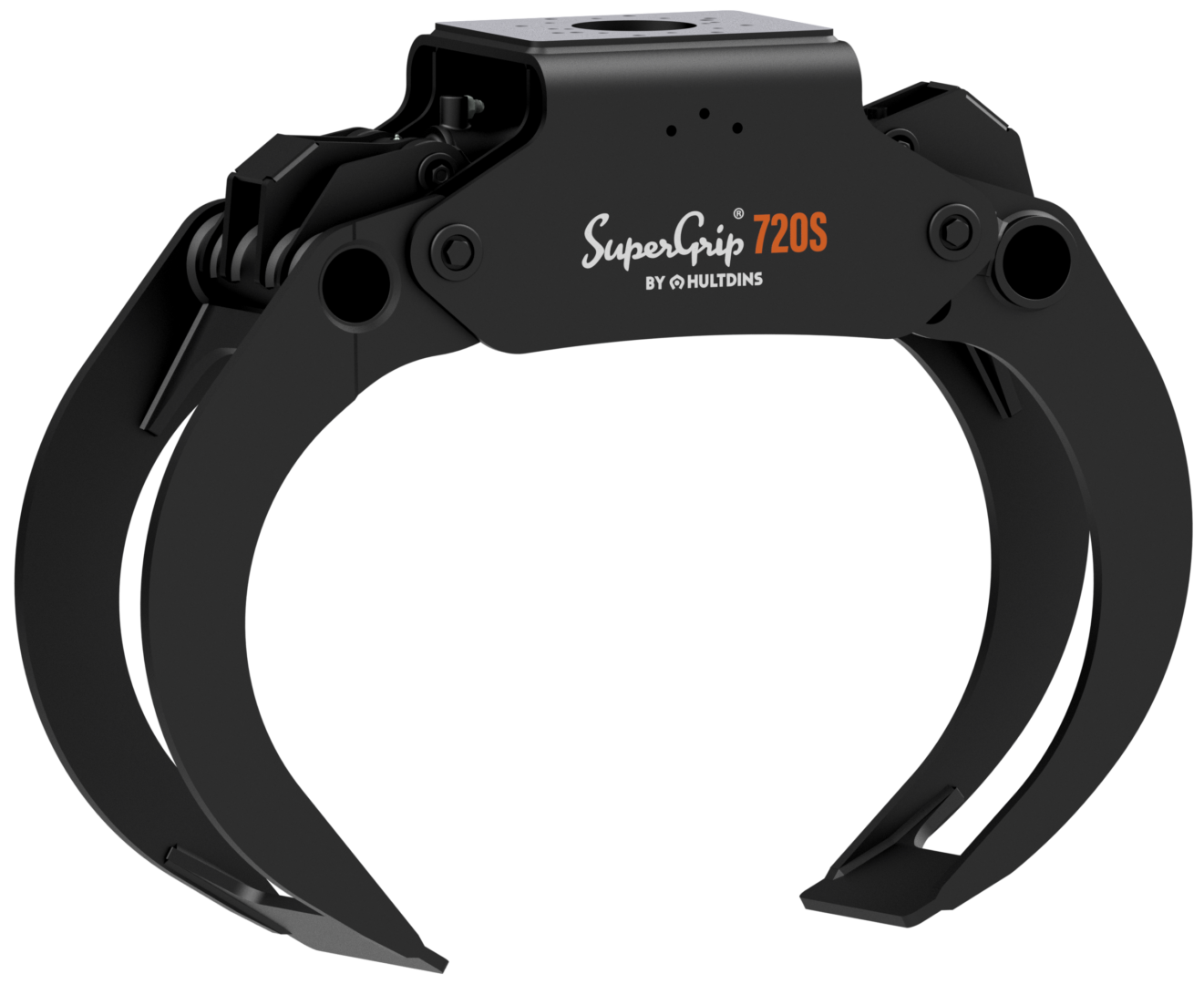

SG 720 S/XRGrapple Area 0.26 m2
Max. Load 4 500 kg
Weight 285 kg
Grapple Area 0.31 m2
Max. Load 4 500 kg
Weight 296 kg
Grapple Area 0.36 m2
Max. Load 8 000 kg
Weight 429 kg
Grapple Area 0.52 m2
Max. Load 8 000 kg
Weight 529 kg
Grapple Area 0,72 m2
Max. Load 8 000 kg
Weight 583 kg
