SuperGrip

The must-have grapple for forwarders and log trucks.

The original SuperGrip is a light, yet powerful, grapple for regular forwarding operations. The durability and performance has more or less made the SuperGrip an industry standard against which others, and ourselves, are judged.

For three decades the SuperGrip has been our most produced grapple line and is the forefather from which all of our other models has evolved.

Although the SuperGrip is the world’s most common cut to length grapple we continuously develop and improve the line for future use.

SUCCESSFUL INTRODUCTION

The SuperGrip, which was the name of the standard model when first launched, made its debut in 1993 . Thanks to technical innovations, and the use of high-strength steel throughout together with factory-fitted expander pins, it proved an immediate success among users.

A RELIABLE LOG GRAPPLE

Downtime in the forest costs money. That’s why we made the SuperGrip strong and durable, so that you avoid standstills. Despite this, it doesn’t have an ounce of plate more than absolutely necessary. This is to keep the weight down so you can even mount it on a smaller forwarder crane or maybe your timber truck.

REFINED OVER TWO DECADES

Since its launch in 1993, we’ve continually refined the SuperGrip and watched with delight as its use has spread throughout the world. Our efforts to reach perfection, however, never end. So despite the success of the SuperGrip, we continue the work to refine the forefather of modern log grapples.

WORKS UNDER PRESSURE

The SuperGrip is fully robot-welded and equipped with a sturdy, end-position-damped cylinder. So it can handle high pressure both in the field and hydraulically, the latter up to 250 bar. Did we mention that it’s fitted with expander pins as standard? This means no play anywhere in the grapple.

SG 260 SG 260
SG 300 SG 300
SG 360 SG 360
SG 420 SG 420
SG 520 SG 520
Compare the models

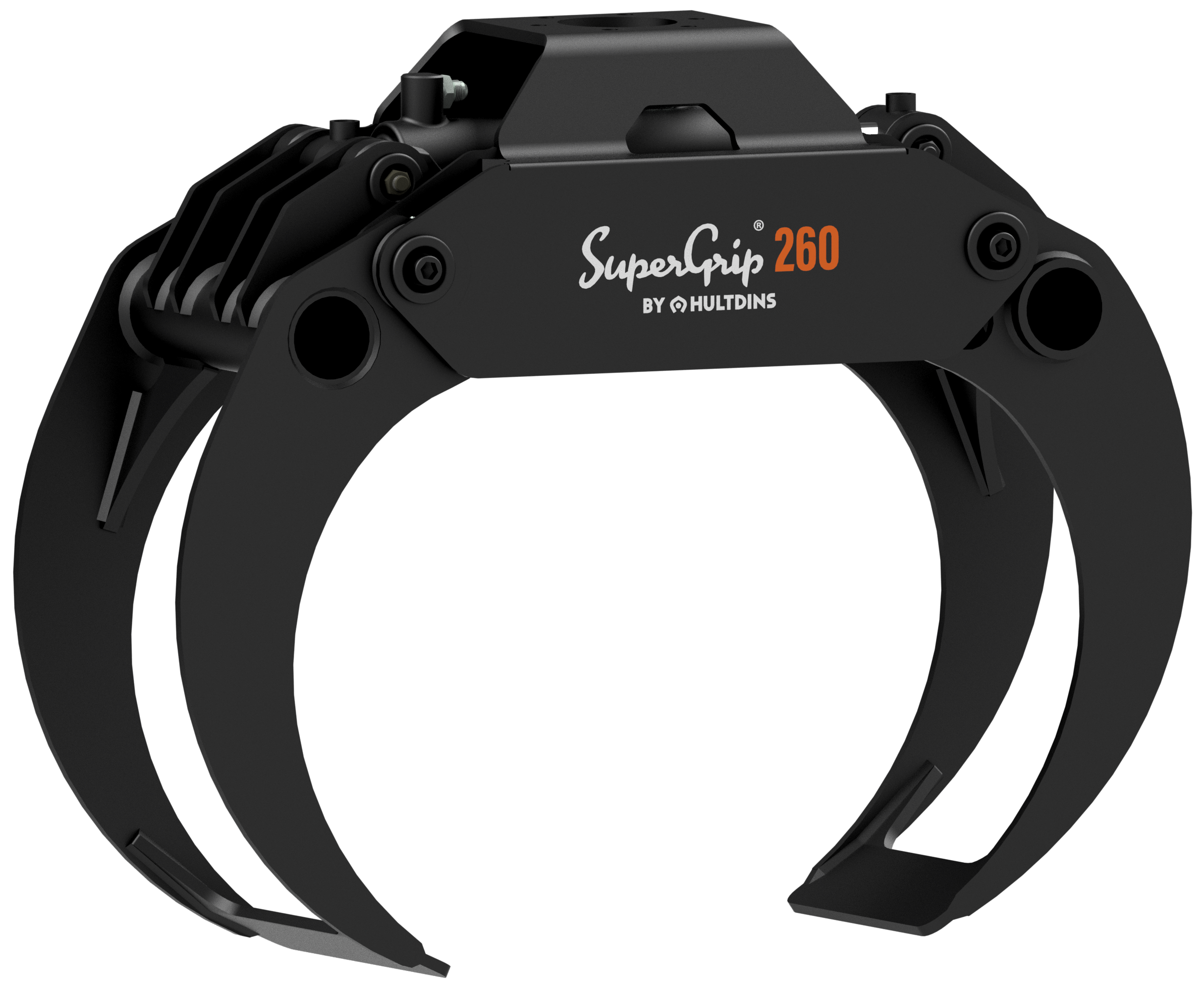

SG 260

SG 260

Grapple Area 0.26 m2
Max. Load 3 500 kg
Weight 187 kg

SG 300

SG 300

Grapple Area 0.30 m2
Max. Load 3 500 kg
Weight 188 kg

SG 360

SG 360

Grapple Area 0.36 m2
Max. Load 5 000 kg
Weight 306 kg

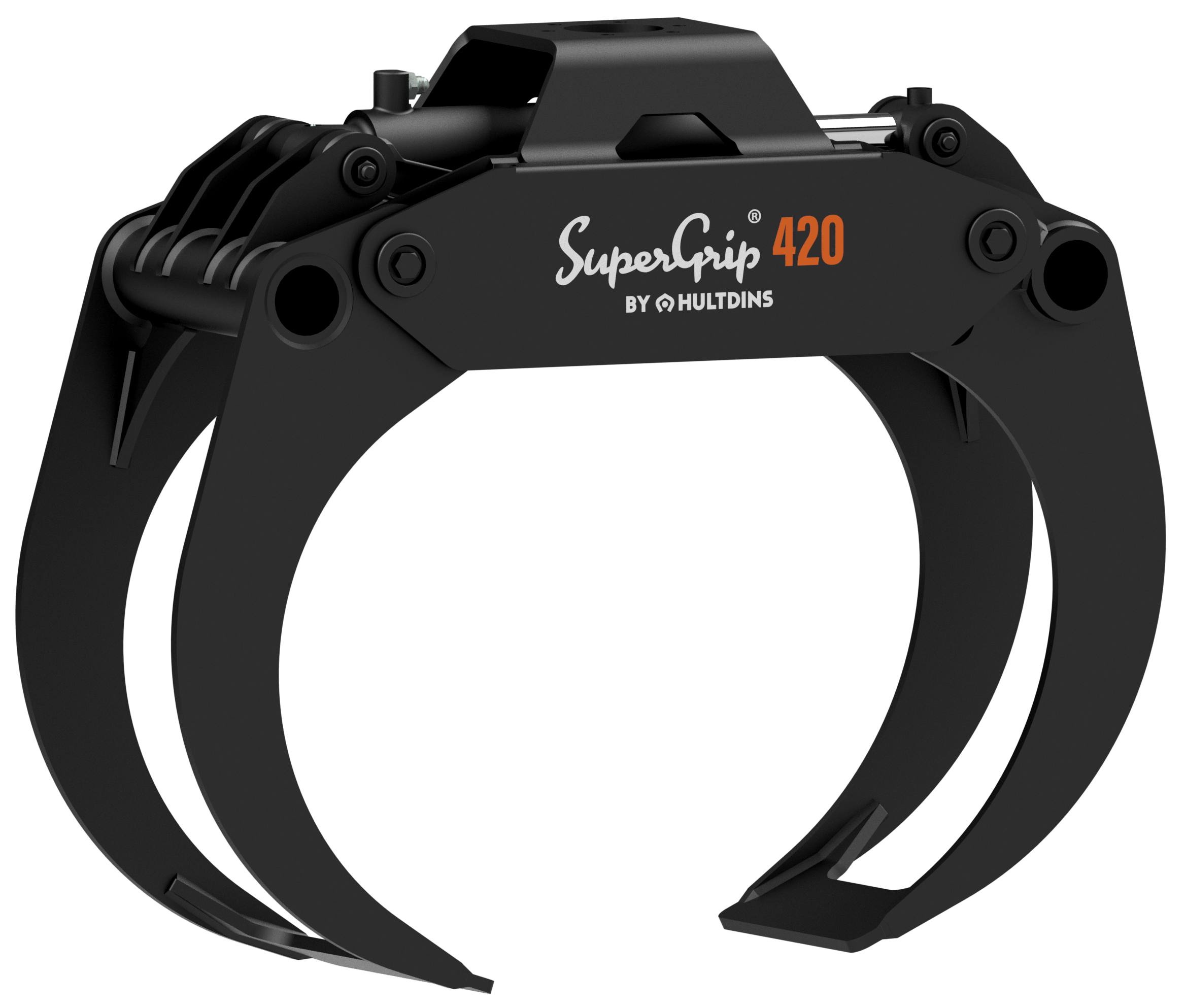

SG 420

SG 420

Grapple Area 0.42 m2
Max. Load 5 000 kg
Weight 328 kg

SG 520

SG 520

Grapple Area 0.52 m2
Max. Load 5 500 kg
Weight 360 kg

Technical specifications
Documentation
SuperGrip (GER)
Supergrip (SV)
SuperGrip (EN)
